Microcontrollers (MCUs) are specialized integrated circuits (ICs) designed to perform dedicated tasks within a specific application. Unlike general-purpose microprocessors found in computers, microcontrollers are optimized for embedded systems and perform a particular set of functions without the need for external components. They are widely used in various electronic devices and systems due to their low power consumption, compact size, and cost-effectiveness.
Components of a Microcontroller :-
A typical microcontroller comprises several essential components, including:
1.Central Processing Unit (CPU) :-
The CPU is the core processing unit of the microcontroller responsible for executing instructions and managing the data flow.
2. Memory :
Microcontrollers have two types of memory:
Program Memory (Flash or ROM) :
Stores the program or firmware that controls the MCU's operation.
Data Memory (RAM) :
Temporarily stores data and variables required during program execution.
3. Input/Output (I/O) Ports :
These ports allow the microcontroller to interact with external devices, sensors, and actuators. They can be configured as digital input, digital output, analog input, or analog output.
4. Timers and Counters :
Microcontrollers often include built-in timers and counters, which are useful for generating accurate time delays, measuring intervals, and handling real-time events.
5. Analog-to-Digital Converters (ADC) and Digital-to-Analog Converters (DAC) :
ADCs allow the microcontroller to convert analog signals (e.g., from sensors) into digital values, while DACs enable it to convert digital values back into analog signals (e.g., for controlling analog devices).
Types of Microcontrollers :-
There are numerous types of microcontrollers available in the market, each catering to different requirements and applications. Some common types of microcontrollers include:
8-bit microcontrollers :
These microcontrollers have an 8-bit data bus, which means they can process 8 bits of data at a time. They are generally cost-effective and used in simple applications with low computational requirements.
16-bit microcontrollers :
These microcontrollers have a 16-bit data bus, allowing them to process larger amounts of data in a single operation compared to 8-bit microcontrollers. They are often used in applications that require more computational power.
32-bit microcontrollers :
These microcontrollers have a 32-bit data bus, offering even more processing power and larger memory address spaces. They are commonly used in applications where higher performance is required, such as in industrial automation, automotive systems, and medical devices.
ARM-based microcontrollers :
ARM (Advanced RISC Machines) is a widely used architecture in the microcontroller industry. ARM-based microcontrollers come in various configurations, including 8-bit, 16-bit, and 32-bit, offering a broad range of processing capabilities for different applications.
PIC microcontrollers :
PIC (Peripheral Interface Controller) microcontrollers are developed by Microchip Technology Inc. and are widely used in various applications due to their low power consumption and ease of use.
AVR microcontrollers :
AVR microcontrollers are designed by Atmel (now part of Microchip Technology Inc.) and are popular in hobbyist projects and educational environments due to their simplicity and versatility.

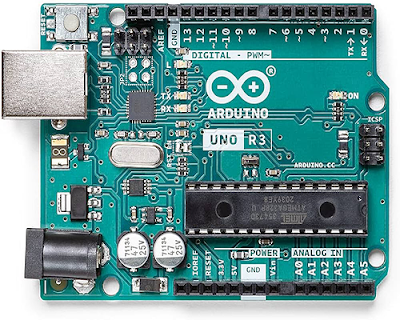

Arduino microcontrollers :
While not a specific type of microcontroller, Arduino boards often use AVR-based microcontrollers. They are widely popular among hobbyists and students due to their ease of programming and a vast community providing support and resources.
Raspberry Pi :
Although not strictly a microcontroller, Raspberry Pi boards combine a microprocessor with other components, making them versatile for various projects and applications ranging from DIY electronics to computing tasks.
ESP8266 and ESP32 :
These are Wi-Fi and Bluetooth-enabled microcontrollers developed by Espressif Systems. They are commonly used in IoT (Internet of Things) applications.
FPGA-based microcontrollers :
Field-Programmable Gate Array (FPGA) devices can also be used as microcontrollers when they are configured with appropriate logic and control circuits. They provide flexibility and customization options for specific applications.
These are just a few examples of the types of microcontrollers available. Each type has its advantages and is suitable for specific applications based on factors like processing power, memory requirements, cost, and power consumption.
Conclusion :-
Microcontrollers are the backbone of modern embedded systems, providing the intelligence and functionality to various electronic devices. Whether it's a simple household appliance or a sophisticated industrial automation system, selecting the right type of microcontroller is crucial to meet the specific requirements of the application.
As technology continues to evolve, microcontrollers will undoubtedly play an ever-expanding role, driving innovation and shaping the future of electronics. Understanding the different types of microcontrollers allows engineers and developers to make informed choices and create cutting-edge solutions for the world we live in.
